Pultruded Cooling Tower

Pultruded Cooling Tower is same as counter flow ,induced draft cooling tower , the difference is the structure of this cooling tower is constructed using Pultruded FRP Cannel,

The name Pultruded is process for manufacture of fibre-reinforced plastics with constant cross-section. The term is a portmanteau word, combining “pull” and “extrusion”. As opposed to extrusion, which pushes the material, pultrusion pulls the material.

The FRP Channel that used in construction of structure of Cooling tower is made of pultrusion process, because of that , this cooling tower is called Pultruded cooling tower.

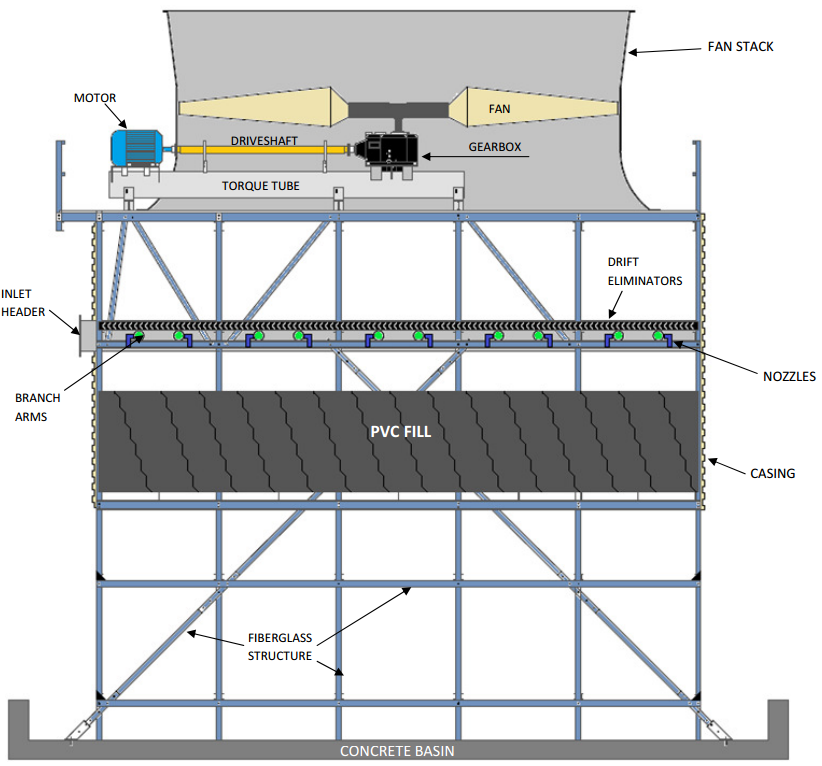

Structural Diagram

More Images of Plutruded Cooling Tower

  • Structure: Made of pultruded fiberglass material for durability.
  • Hardware: Hot-dip galvanized for corrosion resistance, with stainless steel hardware available at additional cost.
  • Casing: Composed of pultruded FRP or corrugated FRP sheets of adequate thickness.
  • Fan Deck: Constructed from robust and strong pultruded FRP panels or sheets.
  • FRP Fans: Proven design provided by a leading fan manufacturer.
  • Fan Cylinder: Made from tough, durable FRP or GRP material.
  • Drift Eliminator: Efficient PVC drift eliminator in cellular or full-wave design to minimize water losses and fan air pressure, resulting in reduced fan energy consumption; fill type is film or splash as per client requirements.
  • Nozzles: Made from PP or PVC, non-clogging type for optimal efficiency.
  • Drive Shafts: Hollow construction drive shafts in stainless steel or hot-dip galvanized steel, balanced for durability.
  • Gear Box: Spiral bevel or spiral bevel cum helical design, validated by the Indian Institute of Technology, meeting CTI USA’s STD-III and AGMA standards; each gearbox undergoes load testing at the factory to ensure zero-defect delivery.

Features

  • PULTRUDED FRP Field Erected Cooling Towers
  • Optimal Thermal Performance Design
  • Heavy Duty Cooling Towers
  • Highly Resistant to Corrosive Environment
  • Low Cost and Faster Construction Compared to RCC Cooling Towers
  • Designed for Industrial Application

Advantages

  • Ideal for wet & dry operation
  • Lowest power consumption
  • Lightweight design
  • UV resistant & non-corrosive
  • Maintenance-free
  • Longest life
  • Weatherproof construction
  • Performs to required specifications
