Introduction

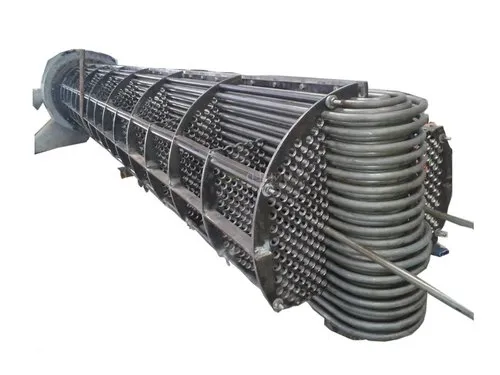

High-pressure tube bundles is a crucial component in shell and tube heat exchangers, designed to withstand extreme pressures and temperatures. These tube bundles ensure efficient heat transfer between two fluids while maintaining durability under high mechanical stress. They are widely used in industries such as power generation, petrochemicals, oil and gas, chemical processing, marine applications, and HVAC systems. High-pressure tube bundles are specifically engineered to handle operating pressures exceeding 6.4 MPa (64 bar). Their design includes thicker tube walls, heavy-duty tube sheets, and proper tube support systems such as baffles and tie rods. These reinforcements help reduce vibration, mechanical fatigue, and the risk of leaks under extreme conditions. Common applications include boiler feedwater heating in thermal power plants, gas cooling and heat recovery in petrochemical refineries, and steam condensation in industrial boilers. To enhance heat transfer efficiency, high-pressure tube bundles incorporate optimized tube arrangements such as parallel, crossflow, or counterflow patterns. Finned tubes may be used to increase the surface area for improved thermal performance.

Key Features of High-Pressure Tube Bundles

Designed for High-Pressure Applications

  • Definition: High-pressure tube bundles are engineered to handle operating pressures above 6.4 MPa (64 bar), making them suitable for intensive industrial operations where high fluid pressures are involved.
  • Structural Reinforcements:
    • Thicker tube walls to resist internal pressure.
    • Heavy-duty tube sheets that prevent fluid leaks under extreme conditions.
    • Proper tube support (baffles and tie rods) to reduce vibration and mechanical fatigue.
  • Common Applications:
    • Boiler feedwater heating in thermal power plants.
    • Gas cooling and heat recovery in petrochemical refineries.
    • Superheated steam condensation in industrial boilers.

Superior Heat Transfer Efficiency

  • Optimized Tube Arrangement:
    • Tubes are positioned in a parallel, crossflow, or counterflow pattern to enhance heat transfer efficiency.
    • Finned tubes may be used to increase the surface area, improving thermal performance.
  • Flow Dynamics:
    • Laminar flow vs. turbulent flow: Depending on the application, tubes are designed to maintain either low-resistance flow for stable heating/cooling or turbulent flow for enhanced heat transfer.
    • Baffles and flow diverters ensure maximum contact between fluids and the heat exchanger surface.
  • Material Considerations:
    • High thermal conductivity metals (such as copper and aluminum brass) are used to accelerate heat transfer.
    • Corrosion-resistant coatings ensure long-term efficiency by preventing scaling and fouling.

Robust Material Construction

  • Why Material Choice Matters:
    • High-pressure environments require materials that can withstand thermal expansion, pressure fluctuations, and chemical exposure.
    • Selection depends on fluid type, operating temperature, and corrosive properties.
  • Common Materials Used:
    • Stainless Steel (SS 304, SS 316, SS 316L) – Corrosion-resistant and durable, ideal for steam and high-pressure water applications.
    • Titanium – Exceptional resistance to seawater corrosion, used in marine and offshore industries.
    • Cupronickel (90/10 or 70/30) – Best for brine, seawater, and chemical process cooling.
    • Carbon Steel – Strong and cost-effective, used in power plants and oil refineries.
    • Brass Alloys – Good thermal conductivity, used in HVAC and refrigeration heat exchangers.

Customizable Designs

  • Tube Configuration Options:
    • Straight Tubes – Allow easier cleaning and maintenance, commonly used in oil refineries and chemical plants.
    • U-Tubes – Provide thermal expansion flexibility, reducing mechanical stress under extreme temperature variations.
  • Bundle Type Options:
    • Fixed Tube Sheet Bundle – Offers high structural integrity but requires chemical cleaning since the tubes cannot be removed.
    • Floating Head Bundle – Allows the tube bundle to expand and contract freely, reducing stress from thermal expansion.
    • Removable Tube Bundle – Makes maintenance and cleaning easier by allowing tube replacement without dismantling the entire heat exchanger.
  • Tube Sheet and Baffle Options:
    • Segmental Baffles – Improve fluid distribution and heat transfer efficiency.
    • Orifice Baffles – Reduce pressure drop and control flow rate.
    • Double-Tube Sheet Design – Used when absolute leak prevention is required in industries like pharmaceuticals.

Efficient Pressure Handling

  • Preventing Pressure Surges:
    • High-pressure tube bundles are equipped with reinforced tube sheets and end plates that prevent failures due to sudden pressure spikes.
    • Designed to handle fluctuating operating conditions without structural degradation.
  • Pressure Control Mechanisms:
    • Expansion joints are integrated to accommodate temperature-related volume changes.
    • Anti-vibration baffles reduce tube oscillations under high flow rates.
  • Leak-Proof Design:
    • Tube-to-tube sheet welding or roller expansion techniques prevent fluid leaks under high pressure.
    • Double tube sheets provide extra sealing for hazardous fluid handling.

Applications of High-Pressure Tube Bundles

Power Generation

  • Used in boilers, steam condensers, and heat recovery systems.
  • Withstands high-temperature and high-pressure steam environments.
  • Essential for nuclear power plant cooling systems.

Petrochemical and Refinery Industry

  • Used in hydrocarbon processing, crude oil distillation, and gas cooling.
  • Handles aggressive fluids at extreme pressures.
  • Reduces energy losses in heat recovery applications.

Chemical Processing

  • Involved in reactor cooling, solvent heating, and waste heat recovery.
  • Prevents corrosion and scaling in harsh chemical environments.
  • Used in ammonia and fertilizer production plants.

Marine and Offshore Industry

  • Designed for seawater-cooled heat exchangers in ships, submarines, and offshore platforms.
  • Titanium and cupronickel materials prevent saltwater corrosion.
  • Used in desalination plants and offshore drilling rigs.

Hydraulic and Lubrication Systems

  • Cools high-pressure hydraulic oil, lubricants, and engine coolant.
  • Prevents oil degradation due to overheating.
  • Ensures optimal viscosity and lubrication in industrial machinery.

HVAC and Refrigeration

  • Used in industrial air conditioning, refrigeration systems, and chiller applications.
  • Improves energy efficiency by enhancing heat exchange rates.
  • Reduces refrigerant consumption, leading to lower operational costs.

Conclusion

High-pressure tube bundles are used in various industries, including power generation for boilers, steam condensers, and heat recovery systems. In the petrochemical and refinery industry, they are essential for hydrocarbon processing, crude oil distillation, and gas cooling. Chemical processing plants rely on them for reactor cooling, solvent heating, and waste heat recovery. Marine and offshore applications benefit from corrosion-resistant tube bundles in seawater-cooled heat exchangers used in ships and offshore platforms. They are also used in hydraulic and lubrication systems to maintain optimal viscosity and cooling in industrial machinery. In HVAC and refrigeration systems, high-pressure tube bundles enhance energy efficiency and reduce refrigerant consumption. The advantages of high-pressure tube bundles include their ability to withstand extreme pressures, long service life due to corrosion-resistant materials, high heat transfer efficiency, easy maintenance with removable designs, and adaptability to various industries. Their durability, reliability, and superior performance make them indispensable in demanding industrial applications.
