Introduction
Blowdown control is a vital process in the operation of cooling towers, aiming to maintain optimal water quality by regulating the discharge of contaminated water. As water circulates through the system, dissolved solids, minerals, and impurities accumulate, leading to scaling, corrosion, and fouling. Without effective blowdown management, these contaminants can compromise the efficiency and lifespan of cooling towers and associated equipment. By controlling blowdown, industries can balance water chemistry, optimize heat transfer, reduce maintenance costs, and meet environmental regulations. This process is essential for ensuring that cooling towers operate efficiently while minimizing the consumption of water and energy.
Key Aspects of Blowdown Control:
- Purpose and Importance of Blowdown:
- Prevents Scaling and Deposits: Scaling occurs when minerals like calcium carbonate, magnesium, and silica concentrate in the system due to evaporation. Blowdown controls these levels by removing water with high concentrations of dissolved solids, thus preventing scale buildup that can impair heat transfer efficiency and lead to costly repairs.
- Reduces Corrosion Risk: As water evaporates, contaminants such as chlorides and sulfates become more concentrated. If left unchecked, these can lead to corrosion of metal components, such as pipes, heat exchangers, and valves. Blowdown helps mitigate this risk by removing corrosive ions from the system.
- Methods of Blowdown Control:
- Manual Blowdown: This is a less common method but involves operators discharging water based on visual inspection or periodic assessment. Manual blowdown relies on the operator’s judgment to maintain acceptable water quality and can result in water wastage or inconsistent performance.
- Automatic Blowdown: This is the more advanced and efficient method, using automated systems to regulate blowdown based on real-time monitoring of water quality parameters. Automated blowdown systems use sensors to measure conductivity, pH, and chemical concentrations, triggering blowdown when levels exceed predetermined thresholds. This ensures precise control over water quality without wasting water.
- Parameters Monitored in Blowdown Control:
- Conductivity: Conductivity is an indirect measurement of the total dissolved solids (TDS) in the water. Higher conductivity indicates a higher concentration of dissolved solids. Monitoring conductivity helps determine when blowdown is necessary to maintain optimal water quality.
- pH Levels: The pH of the water is critical in preventing scaling and corrosion. Water that is too acidic (low pH) can lead to corrosion, while water that is too alkaline (high pH) can promote scaling. Blowdown control systems monitor and adjust pH levels to ensure the water remains within the ideal range.
- Blowdown Rate Calculation:
- Cycles of Concentration (COC): The blowdown rate is typically determined by the cycles of concentration, which measure how much the dissolved solids in the water have been concentrated compared to the makeup water. The COC ratio indicates how many times the water can be reused before reaching a critical level of contaminants. Higher COC values allow for less frequent blowdown, conserving water and chemicals, whereas lower COC values indicate more frequent blowdown.
- Makeup Water Quality: The quality of the incoming makeup water affects the blowdown rate. Poor-quality water with high levels of contaminants requires more frequent blowdown to maintain balanced water chemistry in the cooling tower.
- Blowdown Control Systems:

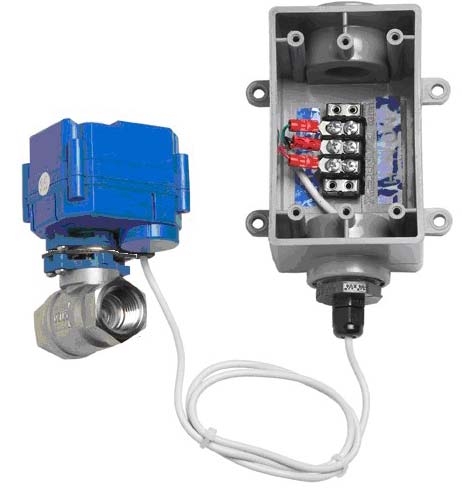

- Flow Control Valves: Automated blowdown systems use flow control valves to regulate the rate at which water is discharged. These valves adjust automatically based on real-time measurements, allowing the system to remove the correct volume of water.
- Automated Controllers: These devices interface with sensors to monitor water quality continuously and adjust blowdown rates as needed. Controllers can be integrated with the cooling tower’s main system for seamless operation.
- Benefits of Effective Blowdown Control:
- Water Conservation: By maintaining a high cycles of concentration, blowdown control ensures that only the necessary amount of water is discharged, significantly reducing water wastage. This is particularly important in areas where water scarcity is a concern.
- Cost Savings: Effective blowdown control reduces the need for fresh makeup water and water treatment chemicals. With less blowdown and more efficient chemical use, operational costs for water treatment and water replenishment are reduced.
- Integration with Water Treatment Systems:
- Blowdown control works hand-in-hand with water treatment systems to maintain optimal water quality. Chemical treatment programs, including scale inhibitors, corrosion inhibitors, and biocides, are adjusted based on the frequency and volume of blowdown. This holistic approach ensures the cooling tower operates at peak performance while minimizing environmental and operational risks.
- Environmental Considerations:
- Blowdown is not just about maintaining the cooling tower; it also plays an important role in reducing the environmental impact of cooling systems. Properly controlled blowdown reduces the volume of wastewater and pollutants discharged, protecting local ecosystems. Additionally, technologies like zero liquid discharge (ZLD) systems and water recycling initiatives are gaining traction to further minimize waste.
Applications of Blowdown Control in Cooling Towers:
- Power Plants:
- High-Temperature Water Management: In power plants, blowdown control is essential to maintain the temperature and pressure conditions of the cooling water used in condenser systems. High-quality cooling water prevents scaling and fouling, which can hinder heat transfer efficiency. Proper blowdown helps reduce these contaminants, ensuring optimal heat exchange performance and minimizing downtime for maintenance.
- Corrosion Control: Cooling systems in power plants are often exposed to high temperatures, making corrosion a significant concern. Blowdown control reduces the accumulation of dissolved solids that could otherwise promote corrosion. This extends the lifespan of heat exchangers, turbines, and condensers.
- Chemical Processing:
- Contaminant Control: In chemical processing plants, blowdown control plays a critical role in controlling the concentration of contaminants in the cooling water. By removing impurities through blowdown, the risk of contamination in chemical products is minimized, and the integrity of process equipment is preserved.
- HVAC Systems (Heating, Ventilation, and Air Conditioning):
- Efficiency and Comfort: Blowdown control in HVAC systems ensures that cooling towers operate efficiently, providing consistent cooling for large commercial buildings or facilities. Effective blowdown minimizes the need for frequent maintenance, reducing downtime and ensuring continuous comfort for building occupants.
- Food and Beverage Industry:
- Water Quality for Process Cooling: Blowdown control in the food and beverage industry ensures the cooling water used in refrigeration systems, such as chillers and heat exchangers, remains clean. This helps maintain optimal cooling conditions and prevents contamination of the final products.
- Pharmaceutical Manufacturing:
- Process Temperature Regulation: Blowdown control is essential in pharmaceutical manufacturing where temperature control is critical for drug production. Efficient blowdown systems help ensure the cooling process maintains a stable temperature, which is vital for the quality and safety of pharmaceutical products.
- Oil and Gas Industry:
- Cooling Water for Refining Operations: The oil and gas industry requires reliable cooling systems to maintain the temperature during various refining processes. Blowdown control ensures that the cooling towers remain free of contaminants, which could otherwise affect the efficiency of heat exchangers and other critical equipment.
Maintenance of Blowdown Control Systems:
- Regular Inspections:
- Routine System Checks: Regular inspection of blowdown systems is essential to ensure that components like valves, sensors, and control mechanisms are functioning properly. Any malfunctions can result in inefficient blowdown or excessive water wastage, impacting operational costs.
- Cleaning and Descaling:
- Fouling Prevention: Periodic cleaning of the cooling tower basin, pipes, and heat exchangers helps prevent fouling, which could lead to ineffective blowdown control. Cleaning removes debris, biofilms, and mineral deposits that might otherwise interfere with the water flow and cooling efficiency.
- Sensor and Valve Maintenance:
- Checking Sensor Calibration: Regular calibration of sensors that measure key water parameters such as conductivity, pH, and total dissolved solids ensures accurate detection of when blowdown is necessary. Poorly calibrated sensors could lead to inaccurate readings, affecting blowdown decisions and water quality.
- Automation System Upkeep:
- Software Updates: For automated blowdown systems, it is essential to keep the software updated to ensure compatibility with new monitoring technologies and improve the efficiency of system operations.
- System Testing: Periodic testing of automated systems can prevent unexpected failures. Simulating different water quality conditions during tests ensures that the blowdown system will react appropriately when needed.
Conclusion
Blowdown control plays a crucial role in various industrial applications, particularly in cooling systems like those in power plants, chemical processing facilities, and HVAC systems. By maintaining water quality and preventing the buildup of contaminants such as scaling, fouling, and corrosion, blowdown control helps optimize the efficiency and longevity of cooling towers. Additionally, regular maintenance of blowdown control systems is essential to ensure reliable operation and minimize the need for costly repairs. As industries continue to focus on water conservation, cost-efficiency, and sustainability, blowdown control systems that integrate automation, real-time monitoring, and predictive maintenance will become even more critical for maintaining optimal cooling tower performance.
